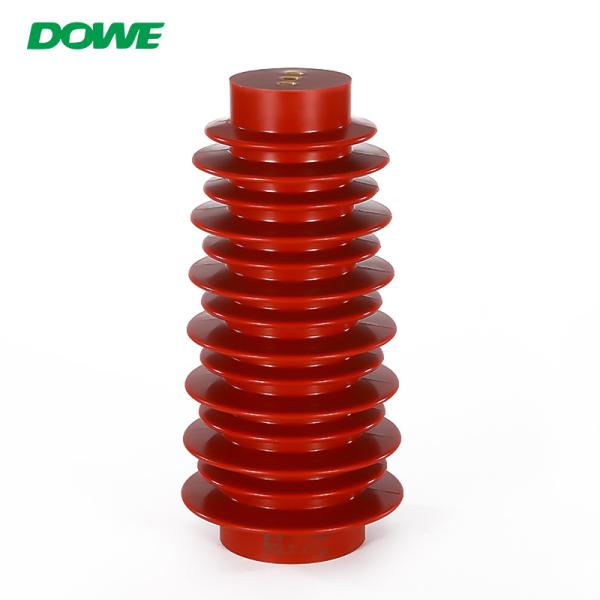

DUWAI Electrical HV High Voltage 40.5KV 145x320 Epoxy Resin Insulator Support Insulator
Cycloaliphatic Epoxy is a low viscosity, low molecular weight, epoxy resin designed for high voltage outdoor electrical applications. The epoxy resin system achieves crack free components with excellent mechanical and electrical properties with high uniformity. It also provides good thermal shock resistance and is suitable for use in outdoor applications.
When the hardener, accellerator, and ller are mixed with epoxy resin and casted under vacuum, crack free components with excellent mechanical and electrical properties can be acheived with high uniformity.
This system is capable to provide good thermal shock resistance and suitable to use for outdoor applications.
Air insulation series is suitable for 12KV-40.5kV indoor switch cabinet(KYN28-12,KYN28-24,KYN61,VD4), including core insulating components such as shielded contact box, shielded wall bushing, sensor insulator, insulator cylinder, embedded pole, molded parts and so on.
| Item | Value | Unit |
| Rated Voltage | 40.5 | kV |
| Rated Current | 630-3150 | A |
| PF | 122/137 | kV/1min |
| PD | 1.1UR≤3 | pc |
| Lightning Impulse Withstand Voltage | 235/167 | kV |
| PTI | 1A2.5 | |
| TG | 105±5 | °C |
| Flame Rating | V1 | UL94 |
| V0 Special needs | |
| Capacitance | 45/100 | mm |
| Creepage than from | 20 | mm/kV |
| Color | red | RAL |
| Name | Model | Voltage | Diameter(mm) | Height(mm) |
| H.V Insulator | ZJ-80X90 | 12KV | 80 | 90 |
| ZJ-65X130 | 65 | 130 |
| ZJ-65X140 | 65 | 140 |
| ZJ-70X142 | 70 | 142 |
| ZJ-75X130 | 75 | 130 |
| ZJ-85X140 | 85 | 140 |
| ZJ-85X145 | 85 | 145 |
| ZJ-85X150 | 85 | 150 |
| ZJ-85X170 | 85 | 170 |
| ZJ-100X130 | 100 | 130 |
| ZJ-100X140 | 100 | 140 |
| ZJ-70X210 | 24KV | 70 | 210 |
| ZJ-70X225 | 70 | 225 |
| ZJ-75X210 | 75 | 210 |
| ZJ-75X225 | 75 | 225 |
| ZJ-110X190 | 110 | 190 |
| ZJ-110X210 | 110 | 210 |
| ZJ-110X225 | 110 | 225 |
| ZJ-110X240 | 110 | 240 |
| ZJ-130X340 | 40.5KV | 130 | 340 |
| ZJ-130X360 | 130 | 360 |
| ZJ-130X380 | 130 | 380 |
| ZJ-145X320 | 145 | 320 |
| ZJ-145X340 | 145 | 340 |
| ZJ-145X360 | 145 | 360 |
| ZJ-145X380 | 145 | 380 |
